Command-Column-Implementation

Command Column Design Constraints

• limitation = 20 characters length column length

Possibilities

• 1- auxiliary digit I/O outputs 1's | 0's ... quantity=7 - triggered at the beginning of the design profile segment

• 2- a file name -

• 3- command strings - make an extensible interface. Allow messages to be sent in & out.

Controller Driver Notes - Writing output state

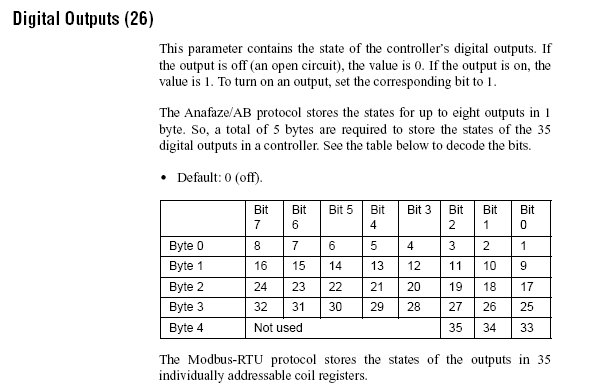

• in order to use more than one output you must read and mask off the output bit register to prevent changing other bits

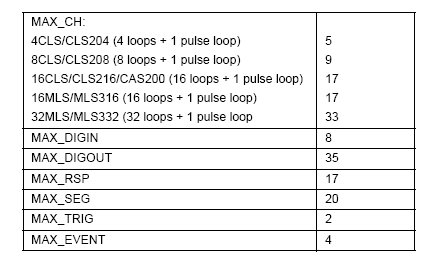

• MAXDIGOUT - is a constant = 35 so I assume the unused are available for digital I/O

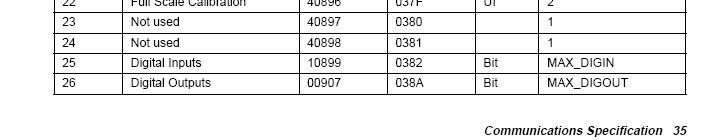

• The address of the digital I/O registers
